Product Description

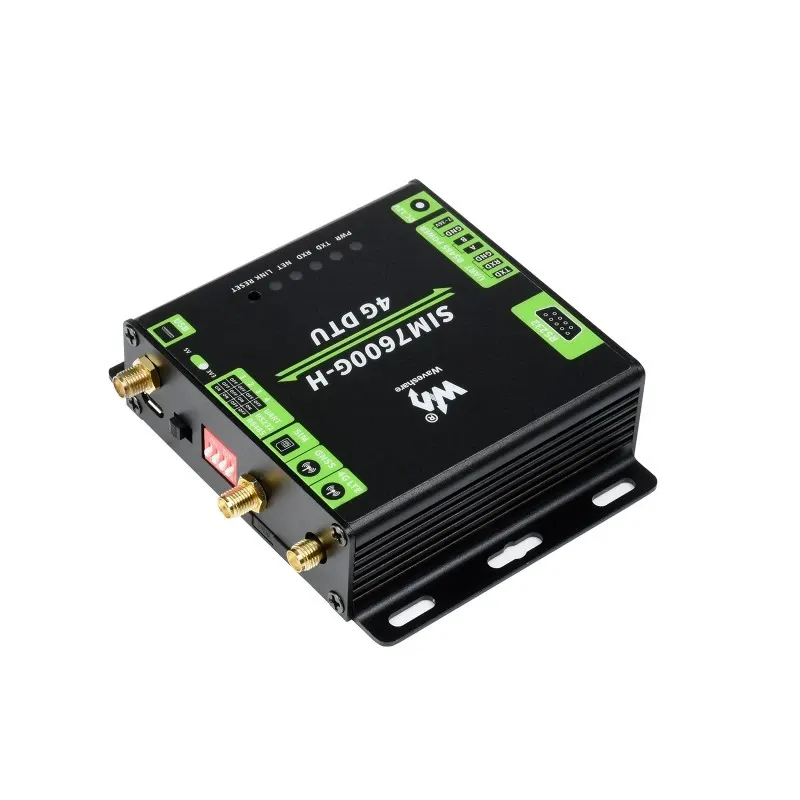

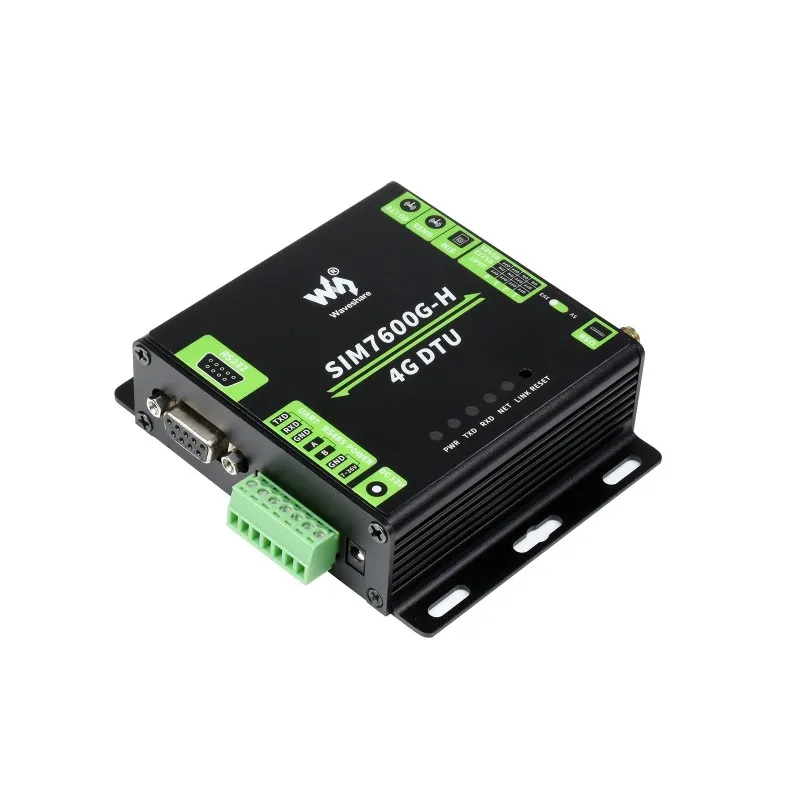

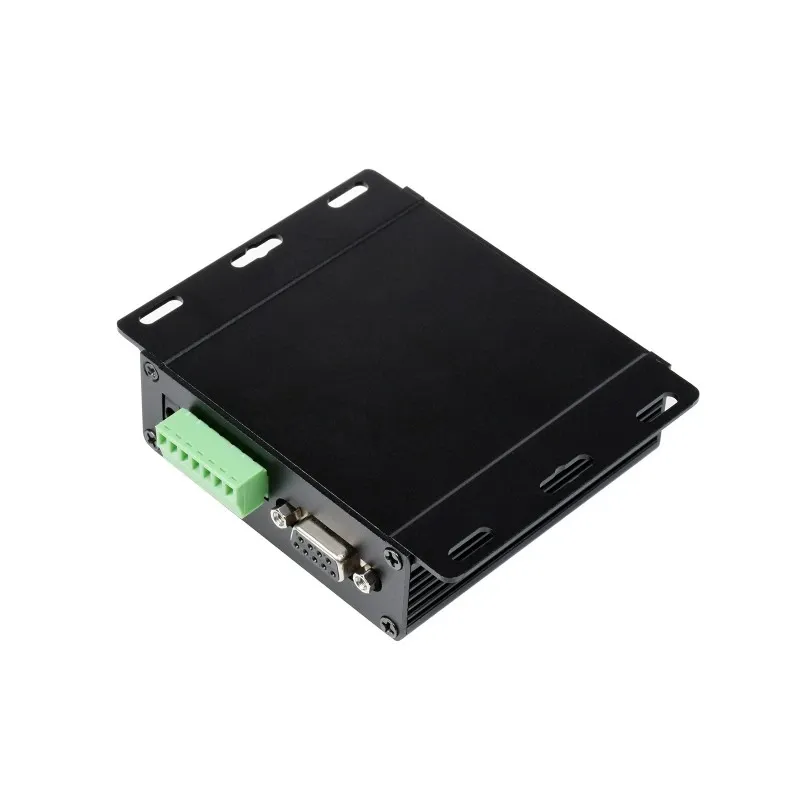

The Waveshare Industrial Grade SIM7600G-H 4G DTU is a high-performance industrial cellular communication module designed to deliver reliable global LTE connectivity with multi-interface support. It is based on the SIM7600G-H cellular engine, supporting 4G/LTE, 3G, and fallback 2G network bands around the world. The module provides multiple communication interfaces including USB, UART, RS232, and RS485, making it suitable for industrial control systems, IoT gateways, remote data units (DTU), telematics, smart metering, SCADA connectivity, and other data-centric applications.
With rugged industrial design and broad protocol support, the Waveshare SIM7600G-H module can be integrated into power systems, PLCs, embedded controllers, and remote monitoring equipment requiring robust data links over cellular networks.
Key Features
Supports 4G/LTE, 3G, 2G global network bands
Multi-interface communication: USB, UART, RS232, RS485
High-speed cellular data & SMS capability
Industrial grade reliability and temperature range
Works with embedded systems, microcontrollers, SBCs
Suitable for IoT, telematics, remote telemetry, industrial automation
Package Includes
1 × Waveshare SIM7600G-H 4G DTU Communication Module
1 × USB Cable
1 × Antenna Set (varies by supplier)
Technical Specifications
Parameter | Specification |
Module Model | SIM7600G-H |
Network Support | 4G/LTE / 3G / 2G (Global Bands) |
Interfaces | USB, UART, RS232, RS485 |
SIM Slot | Standard SIM |
Antenna | External SMA connectors |
Voltage | 5V DC (typical) |
USB | Full Speed USB Data & Power |
UART | TTL level serial |
RS232 | Industrial-level serial |
RS485 | Differential serial |
Compatible With | Arduino, Raspberry Pi, PLC, MCU boards |
Operating Temp | Industrial wide range (varies by model) |
Applications
Industrial IoT gateways
Remote data telemetry units
Telematics & fleet tracking integration
Smart energy & metering systems
SCADA & automation systems
Cellular data and SMS services
