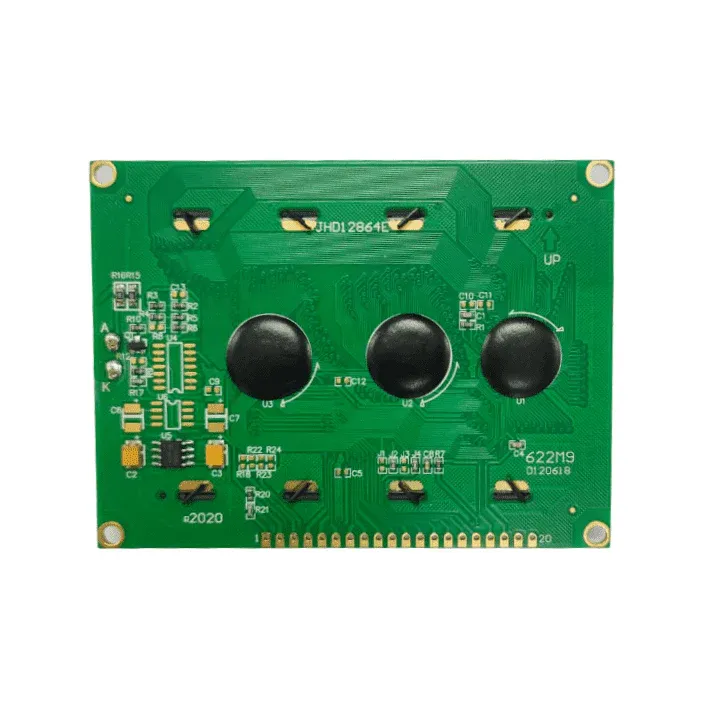

JHD 128x64 Graphic LCD -Blue Backlight

Product Description

The JHD 128×64 Graphic LCD with Blue Backlight is a versatile display module that supports both custom text and graphic output. With a resolution of 128×64 pixels, this LCD module offers more flexibility than character displays and allows rendering of icons, shapes, custom fonts, sensor graphs, and UI elements on embedded systems.

Equipped with an efficient blue LED backlight, it ensures good readability in low-light conditions. The module typically uses a parallel interface and controllers like ST7920 or KS0108 depending on variant, making it compatible with popular microcontrollers such as Arduino, ESP32, STM32, PIC, and Raspberry Pi (via GPIO/adapter). Its robust display area makes it suitable for menu systems, instrumentation readouts, small graphics animations, and data visualization.

Key Features

• Graphic LCD with 128×64 pixel resolution




• Blue backlight for clear visibility




• Parallel interface (4/8-bit data + control lines)




• Supports text & graphic rendering




• Compatible with Arduino, ESP32, STM32, PIC




• Works with libraries like U8g2, LCDGraphic




Package Includes

• 1 × JHD 128×64 Graphic LCD with Blue Backlight




• 1 × Header pins (may vary by supplier)




Technical Specifications

Applications

• Embedded UI dashboards & indicators




• Sensor graphs and data visualization




• Menu control systems




• Robotics and automation panels




• IoT device display interfaces




• Portable instruments and meters
