Product Description

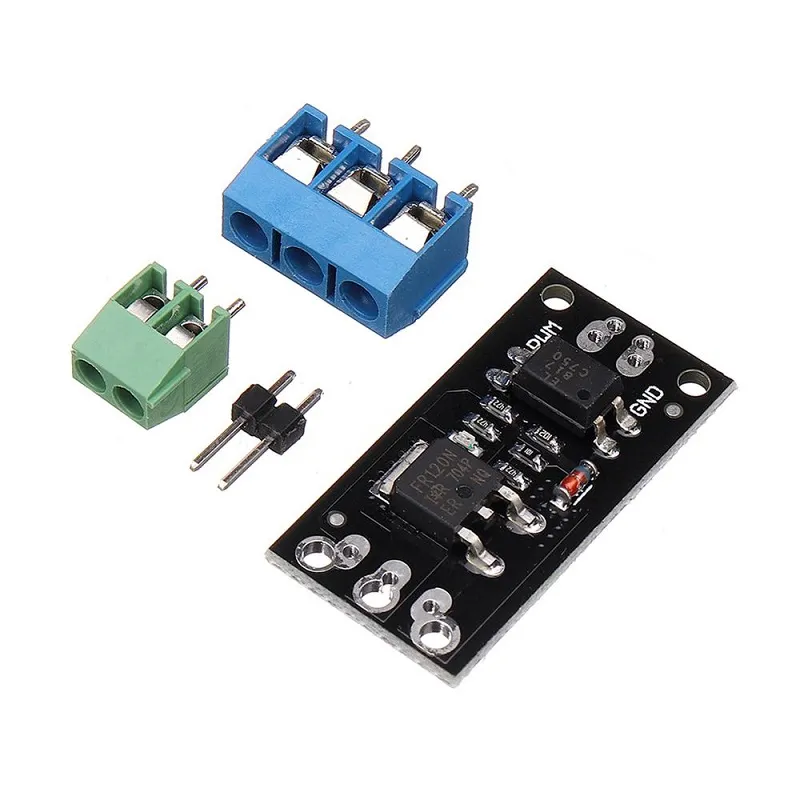

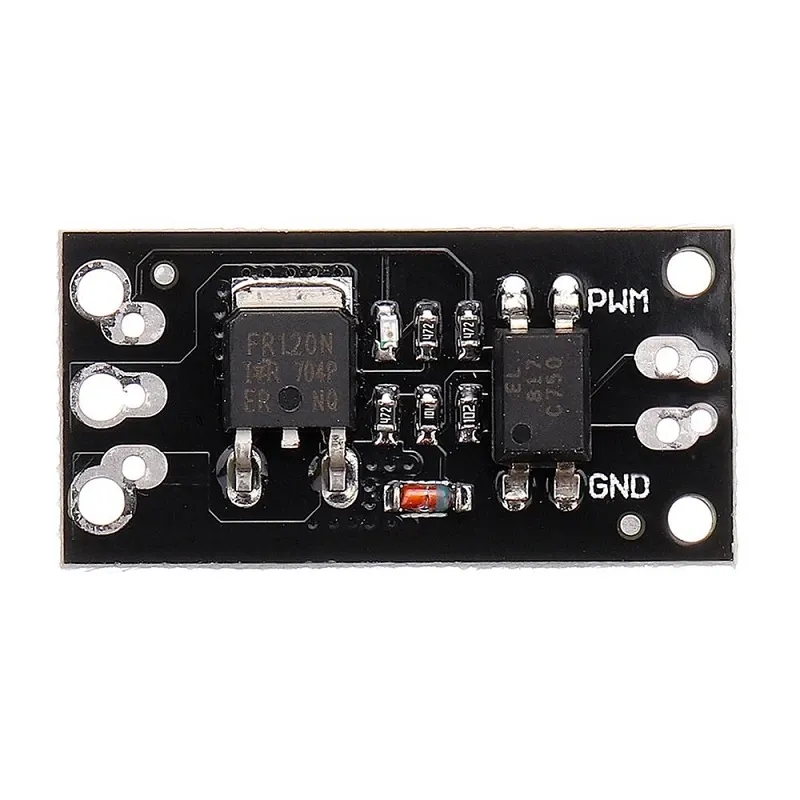

The FR120N MOSFET Control Module is a solid-state switching board designed to replace traditional mechanical relays in DC load control applications. Utilizing a low Rds(on) MOSFET, it can drive high current loads efficiently with minimal heat and long-term reliability. This module is ideal for switching DC motors, solenoids, LED strips, lamps, and other devices where reliable ON/OFF control is required.
Unlike mechanical relays, MOSFET switches provide silent operation, higher switching speed, and longer lifespan. The FR120N module typically accepts logic-level input signals which make it suitable for interfacing with microcontrollers such as Arduino, ESP32, STM32, or Raspberry Pi (via transistor/driver circuit). This driver module is widely used in automation systems, robotics, smart home controllers, and embedded switching applications.
Key Features
MOSFET control replaces mechanical relay
High current load capability
Low heat dissipation
Fast switching response
Logic-level input compatible
Silent operation
Compact module design
Package Includes

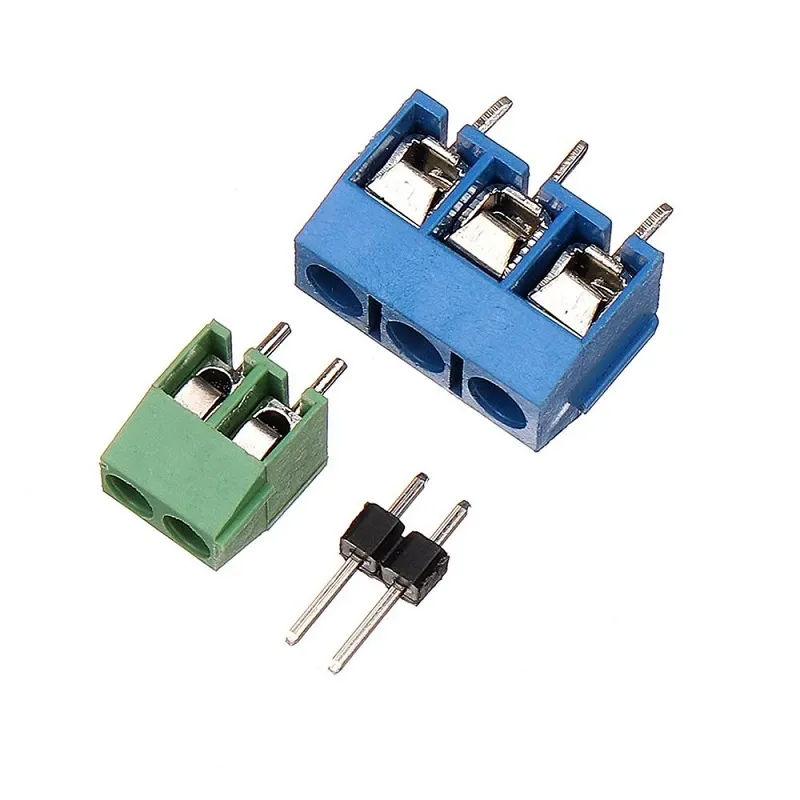

1 × FR120N MOSFET Control Module
Technical Specifications
Parameter | Specification |
MOSFET Type | FR120N (N-channel logic level) |
Control Input | Logic-level TTL (3.3V / 5V) |
Operating Voltage | Up to 30V DC (varies by load) |
Current Handling | High current capable (depending on heat sinking) |
Switching Type | Solid-state DC control |
Load Type | DC motors, LEDs, solenoids |
Interface | Input, Output, GND, Vcc |
Dimensions | Approx. 40 × 20 × 15 mm |
Applications
Relay replacement in DC circuits
Motor, solenoid & actuator control
LED strip and lighting control
Home automation switching
Robotics and embedded projects
IoT load control systems
