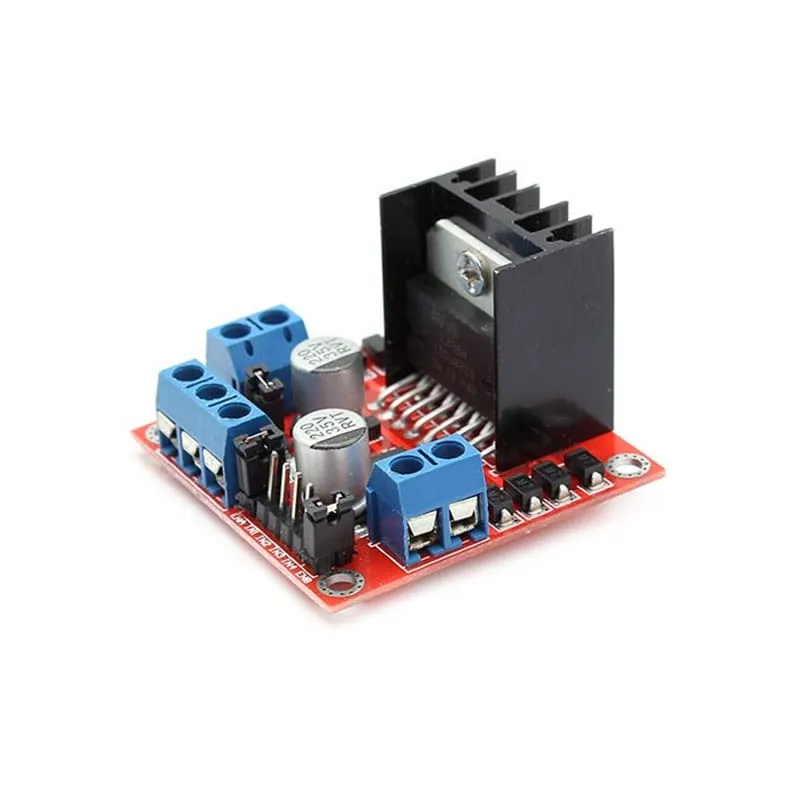

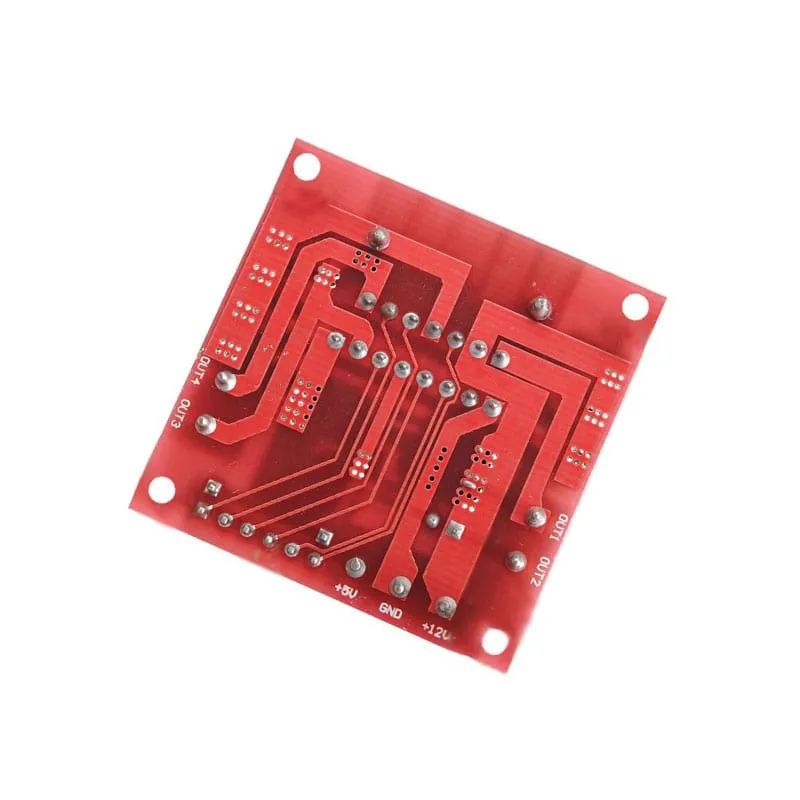

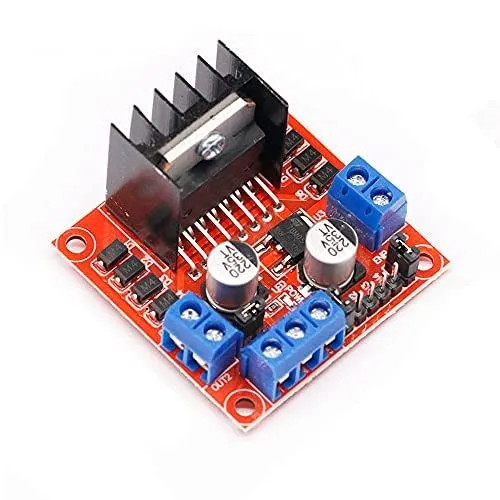

L298 Motor Driver Module

Product Description

The L298 Motor Driver Module is a widely used H-bridge driver board based on the L298N dual H-bridge IC. It allows you to control the direction and speed of two DC motors independently, or one bipolar stepper motor, using simple logic signals from a microcontroller such as Arduino, ESP32, STM32, or Raspberry Pi (via GPIO). This versatile driver module features onboard power circuitry, input control pins, enable pins, and a terminal block for motor power, making it easy to interface and use in robotics and automation projects.

With the ability to handle up to ~2 A per channel and support for both forward/reverse motor control, PWM speed modulation, and brake functions, the L298 driver is ideal for driving robots, RC cars, conveyor belts, automated systems, and many other electromechanical devices.

Key Features

• Dual H-bridge driver via L298N IC




• Controls two DC motors or one bipolar stepper motor




• Direction control and PWM speed control




• Onboard screw terminals for motor connections




• Logic input compatible with 3.3 V / 5 V microcontrollers




• Supports motor power up to ~12 V – 36 V (board dependent)




• Commonly includes onboard regulator & indicator LEDs




Package Includes

• 1 × L298 Motor Driver Module




• 1 × Set of mounting / header pins (varies)




Technical Specifications

Applications

• DC motor drive for robotics & automation




• Bidirectional control & speed modulation




• Stepper motor drive systems

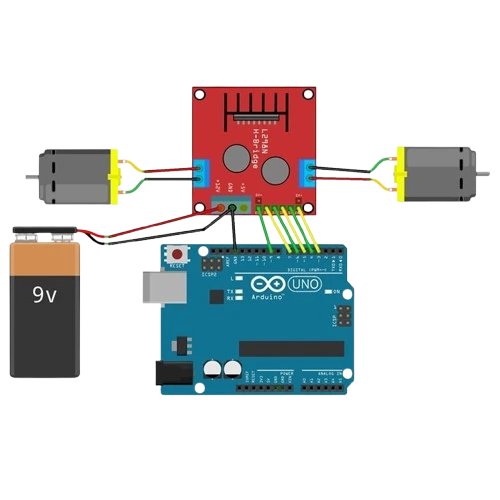

• Arduino / ESP32 / STM32 motor projects




• Mini robot cars & line followers




• Conveyor belt control




• Actuator movement with H-bridge
