Product Description

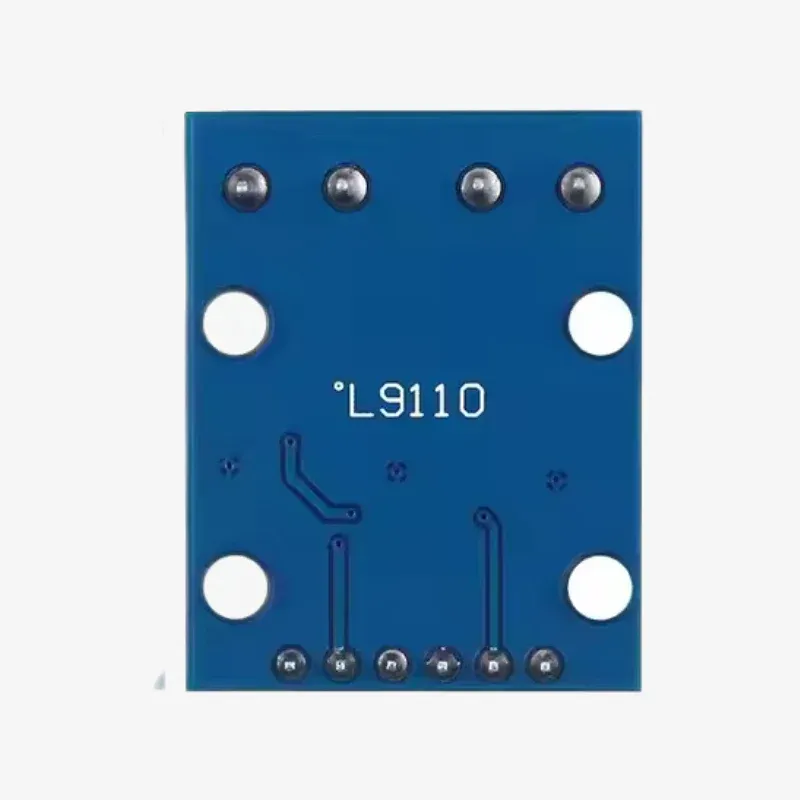

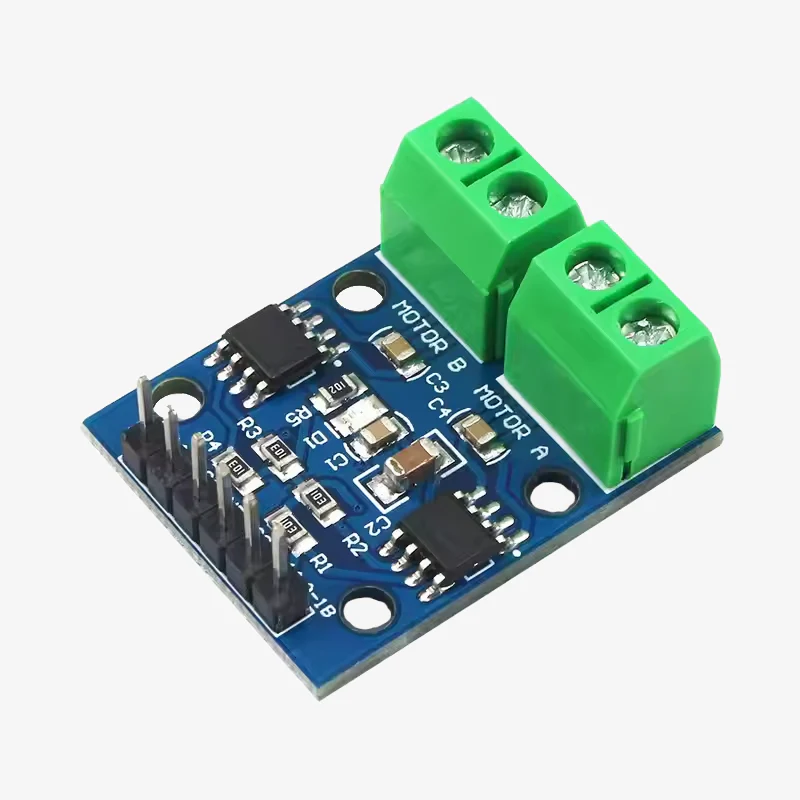

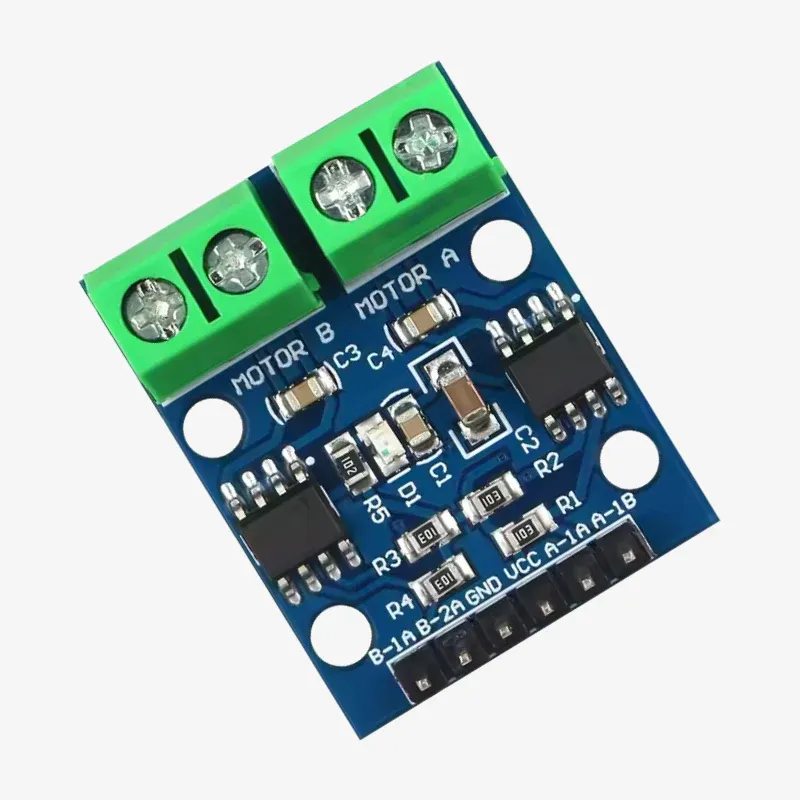

The L9110S Dual DC / Stepper Motor Driver Board Module is a compact and efficient driver board designed for controlling two DC motors or a single bipolar stepper motor in small robotics and embedded projects. Built around the L9110S H-bridge driver ICs, this module operates at low voltages (typically 2.5 V to 12 V) and provides bidirectional drive control, making it ideal for lightweight robot platforms, toy motors, and hobby stepper applications.
It features simple input control lines that can be interfaced directly with microcontroller GPIO pins for forward, reverse, and speed (via PWM) control. The module is popular in Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller ecosystems for small-scale motion control needs where power requirements are modest.
Key Features
Drives two DC motors independently
Capable of driving one bipolar stepper motor
Operates on low DC voltage (2.5 V – 12 V)
Simple H-bridge control for direction & speed
PWM speed control compatible
Logic-level inputs for easy microcontroller interfacing
Compact, breadboard-friendly module
Package Includes
1 × L9110S Dual Motor Driver Board Module
Header pins / mounting holes (varies by supplier)
Technical Specifications
Parameter | Specification |
Driver IC | L9110S (dual H-bridge) |
Motor Channels | 2 × DC motors / 1 × stepper motor |
Operating Voltage | 2.5 V – 12 V DC |
Logic Voltage | Supports 3.3 V / 5 V logic |
Output Current | ~800 mA per channel (varies) |
Control | Direction & PWM speed inputs |
Interface | GPIO / digital IO |
Dimensions | ~35 × 20 mm (approx) |
Applications
Small DC motor control
Bipolar stepper motor motion
Robotics platforms
Smart wheels and tracks
IoT moving part systems
Embedded automation projects
PWM-speed motion control
