Product Description

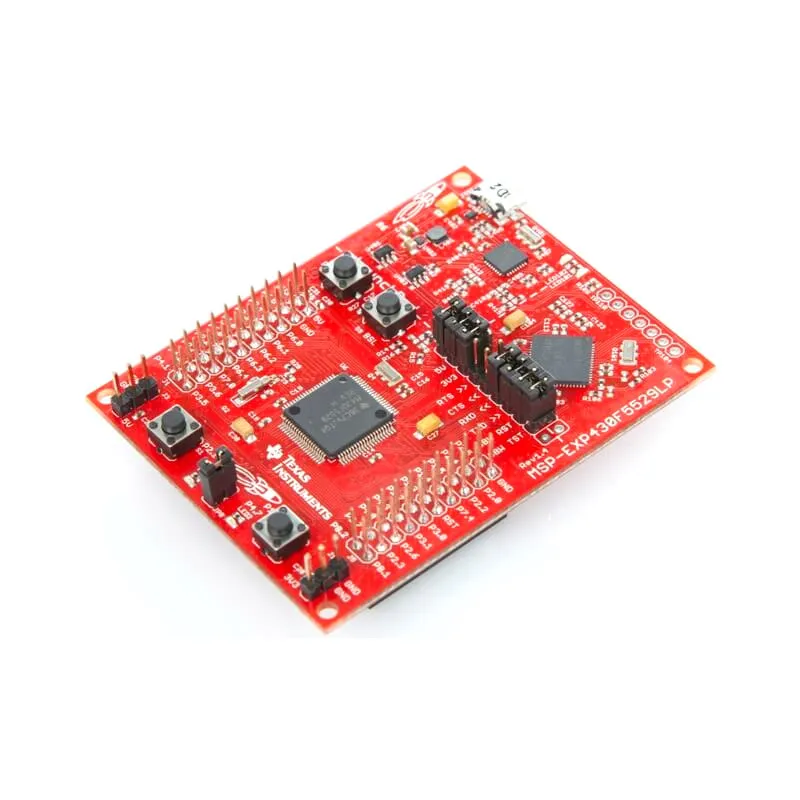

The MSP-EXP430F5529LP – MSP430F5529 USB LaunchPad Evaluation Kit is a comprehensive development platform from Texas Instruments tailored for low-power embedded application prototyping and learning. Centered around the MSP430F5529 microcontroller — a 16-bit ultra-low power MCU with integrated USB peripheral — this LaunchPad kit includes an onboard emulator/debugger, USB connection, expansion headers, and easy jumpers to configure power modes and interfaces.
Designed to accelerate development of energy-efficient systems, USB devices, and sensor-driven embedded applications, the MSP-EXP430F5529LP provides a flexible prototyping experience with full support in TI’s Code Composer Studio (CCS) and Energia IDEs. It’s widely used in battery-powered measurement systems, wearable devices, USB instrumentation, and educational microcontroller projects.
Key Features
MSP430F5529 16-bit ultra-low power microcontroller
Integrated USB peripheral & controller
Onboard debugger/emulator
Standard LaunchPad pin headers
Support for Energia & TI Code Composer Studio
Flexible prototyping and power measurement
Package Includes
1 × MSP-EXP430F5529LP LaunchPad Evaluation Kit
1 × USB cable (for power & programming)
Technical Specifications
Parameter | Specification |
MCU | MSP430F5529 (16-bit RISC) |
Clock Speed | Up to 25 MHz |
Flash Memory | 128 KB |
RAM | 8 KB |
USB | Full-Speed USB 2.0 |
Interfaces | UART, SPI, I2C, Timer, ADC |
Onboard Debugger | Yes |
Supply | USB powered (with optional external) |
Operating Temp | −40°C to +85°C |
Expansion | LaunchPad standard headers |
Applications
USB-based embedded system development
Battery-powered low-power design
Sensor interface prototypes
Learning & educational embedded labs
Communications & interface projects
Automotive/industrial low-power solutions
