Product Description

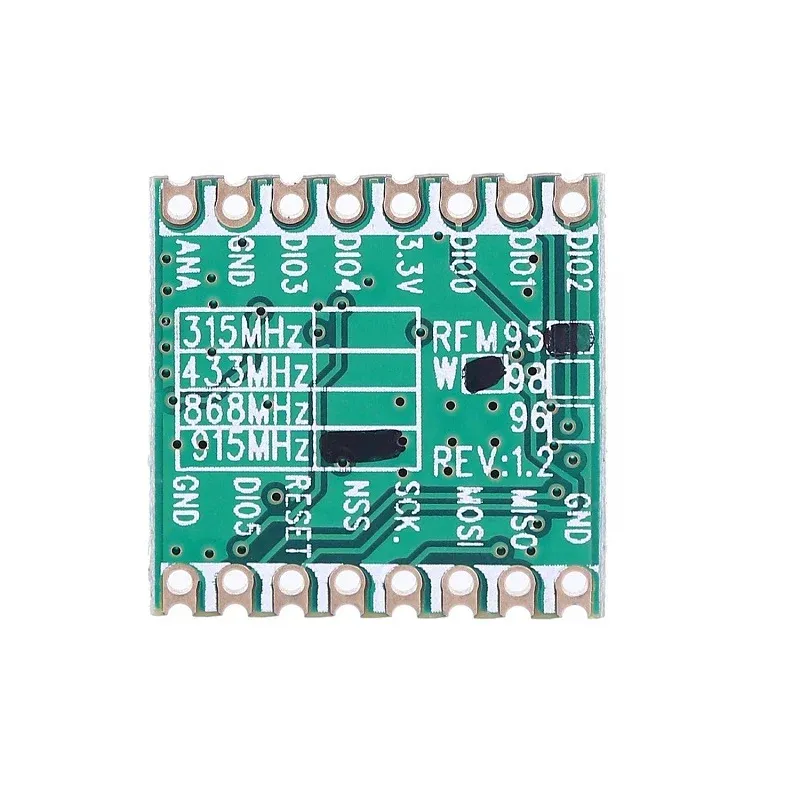

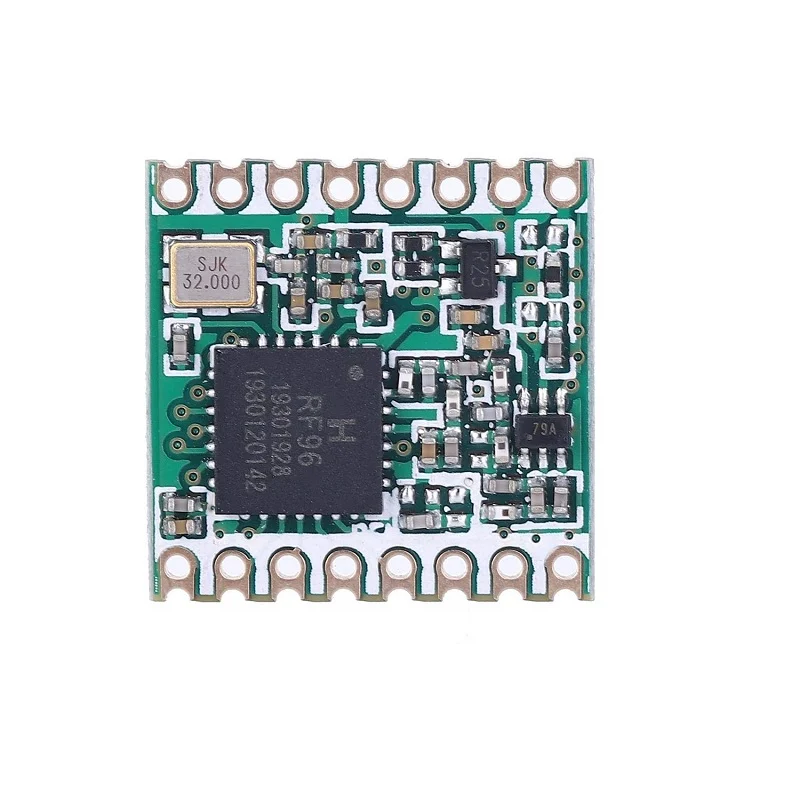

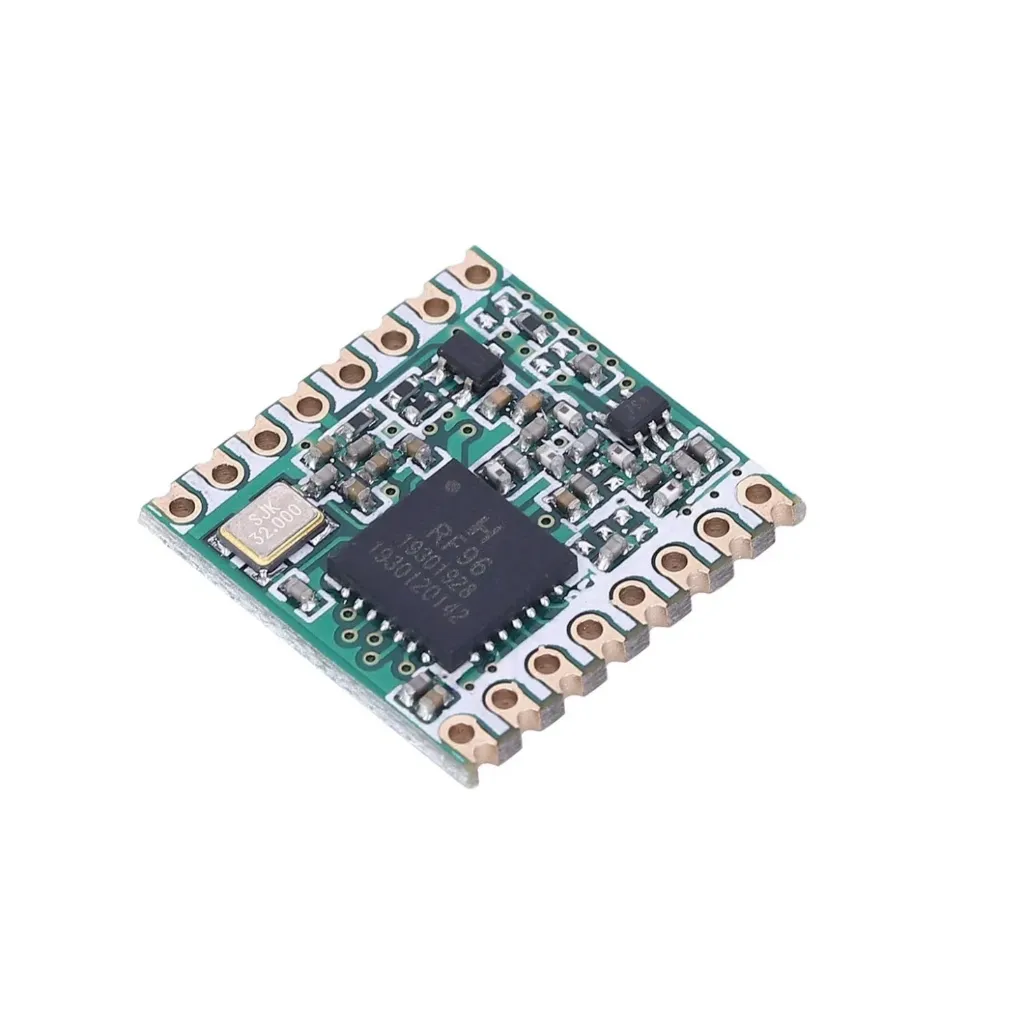

The RFM95W Wireless Receiving Module (915 MHz) is a long-range RF communication module based on LoRa® modulation — typically using the SX1276/SX1278 chipset — designed for low-power wide area network (LPWAN) applications. Operating in the 915 MHz ISM band, this module can receive and transmit wireless data over long distances with high interference resistance and low power consumption.
Using an SPI interface for configuration and data exchange, the RFM95W integrates easily with microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi (via SPI). It excels in applications like remote sensor data collection, IoT telemetry, environmental monitoring, wireless control systems, and smart agriculture devices that require robust communication with minimal infrastructure.
Key Features
Wireless operation in 915 MHz ISM band
LoRa® long-range modulation (high sensitivity)
SPI interface for microcontroller connection
Low power consumption
Good interference immunity
Compatible with Arduino, ESP32, Raspberry Pi, STM32
Supports point-to-point and mesh data links
Package Includes
1 × RFM95W 915 MHz Wireless Receiving Module
1 × Antenna (depending on supplier)
Technical Specifications
Parameter | Specification |
Module Model | RFM95W (LoRa) |
Frequency | 915 MHz (ISM Band) |
Modulation | LoRa® (spread spectrum) |
Interface | SPI (MOSI, MISO, SCK, NSS) |
Operating Voltage | 1.8 V – 3.7 V (typical 3.3 V) |
Sensitivity | Up to –148 dBm (LoRa mode) |
Output Power | Up to +20 dBm (varies by region/antenna) |
Data Rates | Variable (LoRa SF7–SF12) |
Antenna | External antenna connector |
Dimensions | ~16 × 16 mm |
Applications
Long-range IoT sensor communication
Wireless telemetry and data networks
Environmental & agriculture monitoring
Remote control & data logging systems
Smart city RF networks
Prototyping LPWAN projects
