Product Description

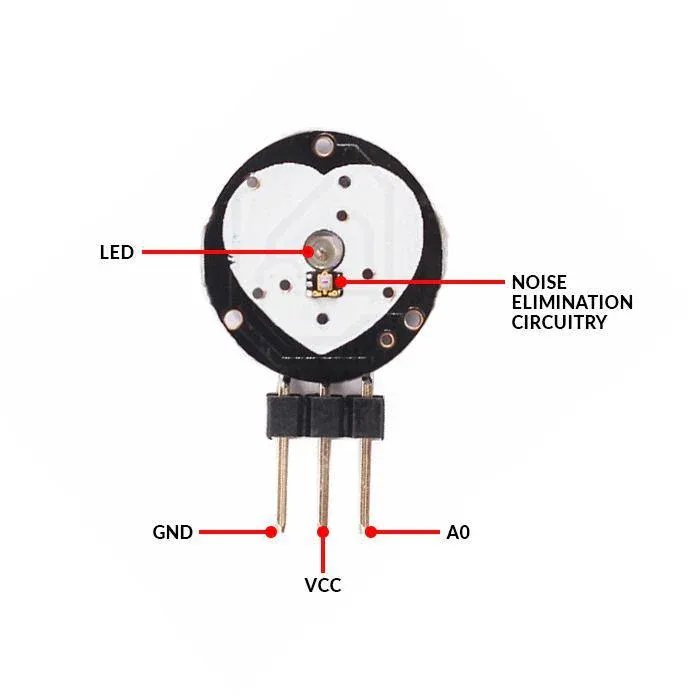

The Heart Rate Pulse Sensor Module is an optical sensor board designed to measure pulse rate by detecting changes in blood volume as blood flows through peripheral capillaries. It typically uses an IR LED and a photodiode to sense the pulse waveform and outputs an analog signal that can be read by microcontroller ADC pins. This module is widely used in wearable health devices, fitness trackers, biofeedback applications, and embedded systems where heart rate monitoring is needed.
Compatible with Arduino, ESP32, STM32, and Raspberry Pi platforms, the pulse sensor provides an easy way to capture heartbeat data and integrate heart rate monitoring into a wide range of projects.
Key Features
Optical heart pulse detection
Outputs analog waveform proportional to heart rate
Works with microcontroller ADC inputs
Small form factor and low cost
Compatible with Arduino, ESP32, STM32
Ideal for wearable & health monitoring projects
Package Includes
1 × Heart Rate Pulse Sensor Module
Technical Specifications
Parameter | Specification |
Sensor Type | Optical Pulse Heart Rate Sensor |
Output | Analog SPD waveform |
Operating Voltage | 3.3V – 5V |
Interface | Analog output |
Typical Current | Low power |
Compatible Platforms | Arduino, ESP32, STM32, Raspberry Pi |
Dimensions | ~25 × 20 mm |
Applications
Wearable heart rate monitoring
Fitness & wellness tracking
Biofeedback systems
IoT health sensing devices
Data logging & monitoring projects
