Product Description

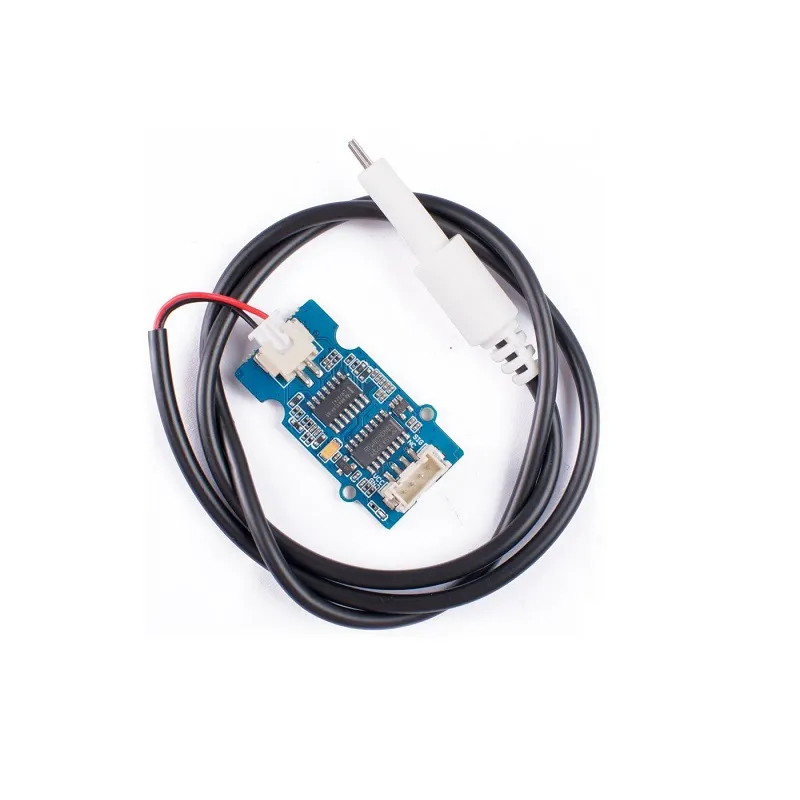

The Seeed Studio Grove TDS Sensor/Meter is a water quality sensor designed to measure Total Dissolved Solids (TDS) in aqueous solutions. TDS is an important parameter that indicates the level of dissolved ionic compounds in water, which can correlate with water purity and suitability for consumption or industrial use. The sensor module features a Grove connector for quick plug-and-play integration with compatible base shields and microcontroller platforms like Arduino, ESP32, and Raspberry Pi with appropriate adapters.
By outputting an analog voltage proportional to TDS levels, this sensor allows microcontrollers to read and convert water quality data into meaningful values for monitoring, logging, and control purposes. It’s commonly used in IoT water quality monitoring stations, aquaculture systems, drinking water purifiers, environmental sensing projects, and research applications.
Key Features
Measures Total Dissolved Solids (TDS) in water
Grove connector for easy integration
Analog voltage output
Compatible with Arduino, ESP32, Raspberry Pi (needs base shield)
Simple and quick setup for water quality projects
Package Includes
1 × Seeed Studio Grove TDS Sensor/Meter Module
Technical Specifications
Parameter | Specification |
Sensor Type | TDS (Total Dissolved Solids) Sensor |
Interface | Analog output (Grove interface) |
Operating Voltage | 3.3V – 5V |
Output | Analog voltage proportional to TDS |
Typical Measurement Range | 0 – 1000 ppm (varies by board/calibration) |
Connector | Grove 4-pin |
Compatible Boards | Arduino, ESP32, Raspberry Pi |
Dimensions | ~70 × 20 × 15 mm |
Applications
Drinking water quality monitoring
DIY water purifier quality indicator
IoT environmental water sensing
Aquaculture & aquarium water quality
Agriculture irrigation water monitoring
Educational prototyping & water lab systems
