Product Description

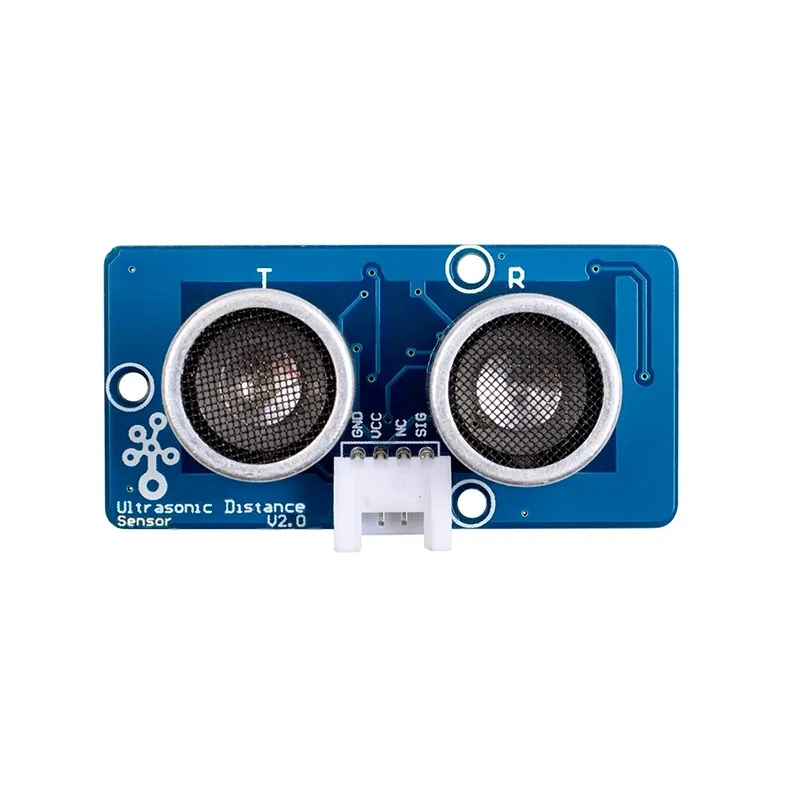

The Seeed Studio Grove Ultrasonic Ranger is a distance measurement sensor module that uses ultrasonic sound waves to detect the presence and distance of objects without physical contact. Equipped with a Grove 4-pin interface, it provides easy breadboard-free connection to Grove base shields for Arduino, ESP32, Raspberry Pi (with adapter), and other microcontrollers.
The sensor emits ultrasonic pulses and times their echo to calculate the distance to obstacles within a typical measurement range. Because of its ease of integration and reliable performance, this ultrasonic ranger is widely used in robotics navigation, obstacle avoidance, level measurement, smart parking systems, and other proximity detection applications.
Key Features
Grove 4-pin plug-and-play interface
Ultrasonic distance measurement
No physical contact required
Compatible with Arduino, ESP32, Raspberry Pi (adapter)
Low power and easy to use
Works well in robotics and automation
Package Includes
1 × Seeed Studio Grove Ultrasonic Ranger Module
Technical Specifications
Parameter | Specification |
Sensor Type | Ultrasonic Distance Sensor |
Interface | Grove 4-pin (VCC, GND, SIG, NC/unused) |
Operating Voltage | 3.3V – 5V |
Distance Range | ~2 cm – 400 cm (typical) |
Accuracy | ~3 mm |
Operating Frequency | 40 kHz |
Operating Temp. | -10°C to +60°C |
Dimensions | ~70 × 20 × 15 mm |
Applications
Obstacle avoidance & robotics
Distance & proximity detection
Smart parking sensors
Level measurement (liquid/solid)
IoT environment sensing
Embedded automation
